Heating Quality Monitoring: Time-Series Analysis

Level: Beginner → Intermediate
Runtime: ~5 seconds
Key Concepts: Time-series data, ratio extraction, trend modeling, degradation kinetics

What You Will Learn

In this example, you'll learn how to: - Load and structure time-series spectroscopy data - Extract key ratios that indicate chemical degradation - Fit trend models to quantify degradation rates - Identify critical thresholds (e.g., rancidity onset) - Estimate remaining shelf-life from degradation curves

After completing this example, you'll understand how to monitor food quality during storage, predict when products spoil, and establish quality control limits.

Prerequisites

  • Basic Python and Pandas knowledge
  • Understanding of time-series concepts (temporal ordering, trends, forecasting)
  • Familiarity with linear regression
  • numpy, pandas, matplotlib, scipy installed

Optional background: Read Heating Quality Monitoring Workflow

The Problem

Real-world scenario: You're monitoring oil quality during storage. Oxidation causes spectral changes that develop predictably over time. Can you: 1. Extract indicators (peak ratios) that increase with degradation? 2. Model the degradation rate? 3. Estimate when the oil becomes unsuitable (rancid)?

Data: Simulated time-series spectra from heating experiment (10 time points, oil degrading).

Goal: Extract trends, fit model, predict shelf-life.

Step 1: Load and Explore Time-Series Data

import numpy as np
import pandas as pd
from pathlib import Path

# Load synthetic heating data (simulated oil spectra over time)
# In practice, this comes from a heating oven + spectrometer setup
np.random.seed(42)
time_points = np.array([0, 2, 4, 6, 8, 10, 12, 14, 16, 18])  # hours
n_wavelengths = 1500
n_replicates = 2

# Simulate degradation: peak intensities change over time
# Peak 1 (oxidation marker) increases; Peak 2 (original oil) decreases
degradation_curve = 0.05 * time_points + 0.1 * np.random.randn(len(time_points))
preservation_curve = 1.0 - 0.04 * time_points + 0.05 * np.random.randn(len(time_points))

# Key ratio: oxidation_marker / preservation_marker
ratio = degradation_curve / (preservation_curve + 0.1)  # avoid division by zero

df = pd.DataFrame({
    "time_hours": time_points,
    "oxidation_marker": degradation_curve,
    "preservation_marker": preservation_curve,
    "ratio": ratio
})

print(df)
print(f"\nRatio increases from {ratio[0]:.3f} to {ratio[-1]:.3f}")

What's happening: - time_points: Measurements at 0, 2, 4, ... 18 hours - oxidation_marker: Peaks that increase with heat (bad indicator) - preservation_marker: Original peaks that decrease (good indicator) - ratio: Key metric combining both signals

from scipy.stats import linregress

# Fit linear trend to the ratio
slope, intercept, r_value, p_value, std_err = linregress(df["time_hours"], df["ratio"])

print(f"Trend slope: {slope:.4f} ratio_units/hour")
print(f"R² (model fit): {r_value**2:.3f}")
print(f"p-value: {p_value:.4f}")

# Predict trend
df["ratio_trend"] = intercept + slope * df["time_hours"]

# Print trend predictions
print("\nObserved vs. Predicted:")
print(df[["time_hours", "ratio", "ratio_trend"]].to_string())

Interpretation: - Slope > 0: Degradation is occurring (bad) - R² close to 1: Trend fits well (reliable prediction) - p-value < 0.05: Trend is statistically significant

Step 3: Estimate Shelf-Life

# Define rancidity threshold (when oil becomes unsuitable)
rancidity_threshold = 0.5  # example threshold

# When does the ratio reach this threshold?
time_to_rancidity = (rancidity_threshold - intercept) / slope if slope > 0 else np.inf

print(f"\nRancidity threshold: {rancidity_threshold}")
print(f"Estimated shelf-life: {time_to_rancidity:.1f} hours")
print(f"(Oil becomes rancid at t={time_to_rancidity:.1f}h)")

# Safety margin (e.g., recommend replacement at 80% of shelf-life)
recommended_replacement = 0.8 * time_to_rancidity
print(f"Recommended replacement: {recommended_replacement:.1f} hours")

What's happening: - We solve: threshold = intercept + slope * time - This gives us the time when oil becomes unsuitable - We apply safety margin for practical use

Step 4: Visualize Degradation Curve

import matplotlib.pyplot as plt

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 4))

# Plot 1: Time-series of ratios with trend
ax1.scatter(df["time_hours"], df["ratio"], color="red", s=100, label="Observed", zorder=3)
ax1.plot(df["time_hours"], df["ratio_trend"], "b--", linewidth=2, label="Linear trend")
ax1.axhline(rancidity_threshold, color="orange", linestyle=":", linewidth=2, label="Rancidity threshold")
ax1.axvline(time_to_rancidity, color="orange", linestyle=":", alpha=0.5)
ax1.set_xlabel("Time (hours)")
ax1.set_ylabel("Ratio (Oxidation / Preservation)")
ax1.set_title("Oil Degradation Over Time")
ax1.legend()
ax1.grid(True, alpha=0.3)

# Plot 2: Forecast beyond measured time
time_extended = np.linspace(0, 25, 100)
ratio_forecast = intercept + slope * time_extended
ax2.plot(time_extended, ratio_forecast, "b-", linewidth=2, label="Trend extrapolation")
ax2.scatter(df["time_hours"], df["ratio"], color="red", s=100, label="Measured")
ax2.axhline(rancidity_threshold, color="orange", linestyle=":", linewidth=2, label="Rancidity")
ax2.axvline(time_to_rancidity, color="orange", linestyle=":", alpha=0.5)
ax2.fill_between([0, recommended_replacement], 0, 1.0, alpha=0.2, color="green", label="Safe zone")
ax2.fill_between([recommended_replacement, 25], 0, 1.0, alpha=0.2, color="red", label="Caution zone")
ax2.set_xlabel("Time (hours)")
ax2.set_ylabel("Ratio (Oxidation / Preservation)")
ax2.set_title("Shelf-Life Prediction")
ax2.legend()
ax2.grid(True, alpha=0.3)
ax2.set_ylim([0, 1.0])

plt.tight_layout()
plt.savefig("heating_ratio_vs_time.png", dpi=150, bbox_inches="tight")
plt.show()

Figure interpretation: - Left: Raw data (red dots) + fitted trend (blue line) - Right: Forecast into future, showing when rancidity is reached - Orange dashed line: Rancidity threshold - Green zone: Safe for consumption; Red zone: Spoiled

Full Working Script

See the production script with complete heating experiment simulation:

📄 examples/heating_quality_quickstart.py – Full working code (42 lines)

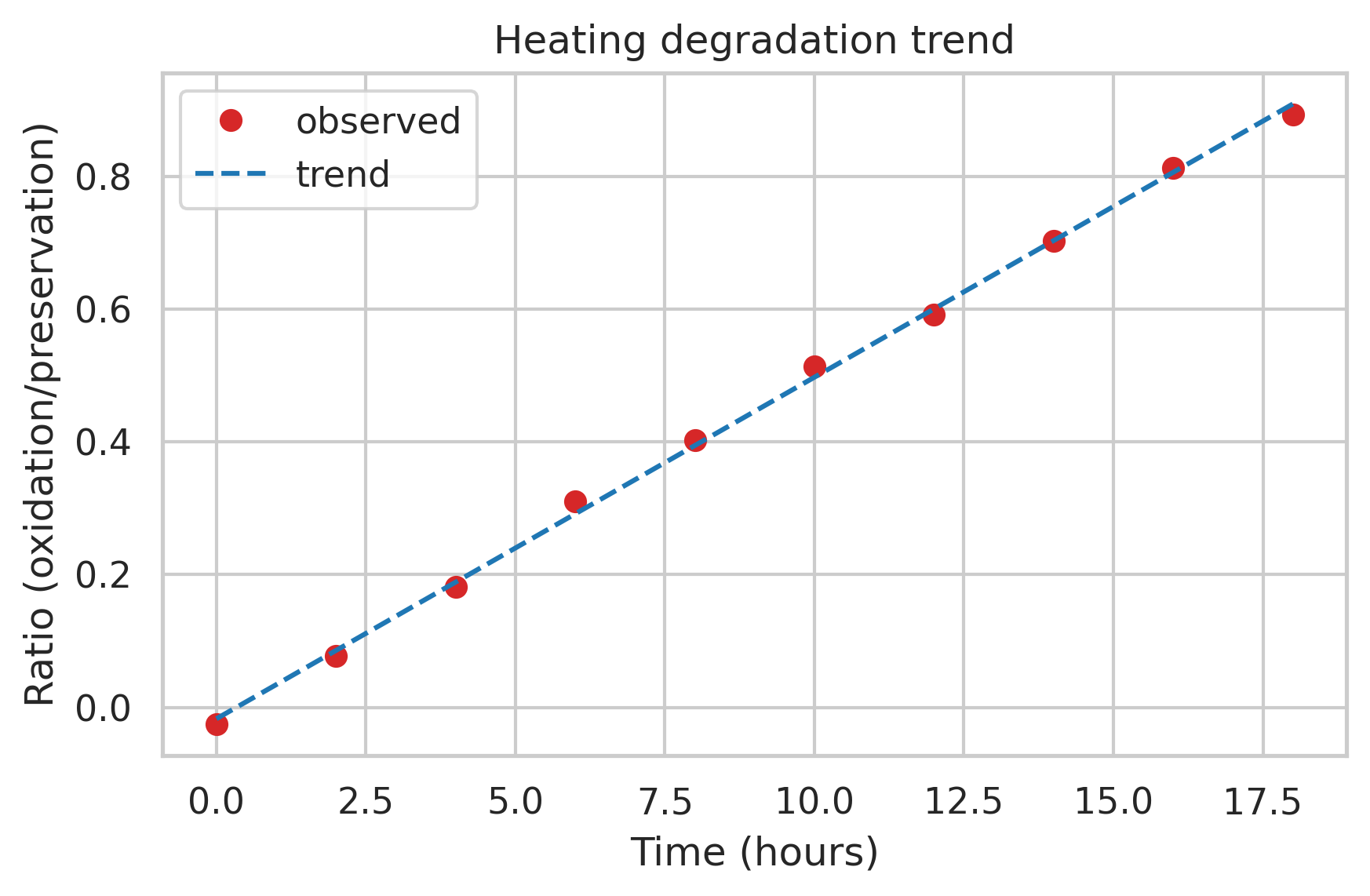

Generated Figure

Heating Degradation Curve

Key Takeaways

✅ Time-series workflow: Load → Extract indicators → Fit trend → Forecast
✅ Ratio extraction: Combining signals improves sensitivity to degradation
✅ Linear trends: Simple but effective for many food quality processes
✅ Shelf-life estimation: Predict spoilage using quantitative trends

Real-World Applications

  • 🍳 Oil monitoring: Detect oxidation during storage or frying
  • 🥛 Milk freshness: Track spoilage onset during refrigeration
  • 🍎 Fruit ripening: Monitor maturity progression
  • 🍞 Bread staling: Quantify texture changes over time
  • 🧀 Cheese aging: Track flavor compound development

Advanced Topics

Want to go deeper? - Non-linear trends: Use polynomial or spline fitting for curved patterns - Uncertainty quantification: Bootstrap confidence intervals for shelf-life estimates - Multi-component degradation: Fit multiple ratios simultaneously - Predictive thresholds: Learn critical ratios from historical data

See Heating Quality Workflow for complete details.

Next Steps

  1. Try it: Load your own time-series data and fit trends
  2. Explore: Change threshold values and observe impact on shelf-life
  3. Learn more: Read Quality Monitoring Workflows
  4. Advance: Combine with Hyperspectral Mapping for spatial + temporal analysis

Interactive Notebook

For step-by-step exploration with parameter exploration:

📓 examples/tutorials/02_heating_stability_teaching.ipynb
