ML & Chemometrics: PCA and Dimensionality Reduction

For notation and symbols used below, see the Glossary.

What?

PCA projects high-dimensional spectra/features into orthogonal components capturing variance; outputs scores (samples in PC space), loadings (feature contributions), explained variance, and visualizations (scores/loadings, scree, optional t-SNE). Used for exploration, denoising, and as input to downstream ML.

Why?

Spectra are high-dimensional and correlated; PCA reveals structure (clusters/outliers), highlights important bands, and checks preprocessing quality. Visuals are qualitative; pair with quantitative metrics (silhouette, between/within ratio/F-like statistic, p_perm).

When?

Use when exploring class structure, reducing dimensionality before ML, or interpreting band contributions.
Limitations: linear method; sensitive to scaling/baseline; t-SNE is visualization-only and parameter-sensitive—pair with metrics.

Where? (pipeline)

Upstream: preprocessing (baseline/norm), feature extraction (peaks/ratios).
Downstream: scores/loadings plots, silhouette/between-within metrics, ML models.

flowchart LR
  A[Features (spectra/ratios)] --> B[PCA / t-SNE (optional)]
  B --> C[Scores + loadings + metrics]
  C --> D[Visualization + ML]

PCA concepts (brief math)

• Center data (X) (n_samples × n_features). Covariance ( \Sigma = \frac{1}{n-1} X^\top X ).
• Eigen-decompose ( \Sigma = V \Lambda V^\top ); columns of (V) are loadings, ( \Lambda ) are variances.
• Scores ( S = X V ); explained variance ratio ( \lambda_i / \sum \lambda ).
• PLS (for calibration) maximizes covariance between (X) and (Y); see regression docs.

Interpreting scores and loadings

• Scores plot: PC1 vs PC2 colored by metadata. Clusters suggest separability; outliers may be bad spectra or novel samples.
• Loadings plot: Loadings vs wavenumber show bands driving each PC; relate peaks to vibrational modes (Spectroscopy basics).
• Worked example: If oil A and B separate along PC1 and PC1 loadings peak at ~1655 cm⁻¹ (C=C stretch), that band contributes to A vs B separation.

Practical patterns

• Oil authentication: PC1/PC2 often separate oil families; loadings highlight unsaturation/ester bands.
• Heating: PC trends correlate with time/temperature; loadings show oxidation markers.
• QC/novelty: Outliers in score space flag suspect batches or artifacts.

Example (PCA + metrics)

from foodspec.chemometrics.pca import run_pca
from foodspec.viz.pca import plot_pca_scores, plot_pca_loadings
from foodspec.metrics import (
    compute_embedding_silhouette,
    compute_between_within_ratio,
    compute_between_within_stats,
)

pca, res = run_pca(X_proc, n_components=3)
plot_pca_scores(res.scores[:, :2], labels=fs.metadata["oil_type"])
plot_pca_loadings(res.loadings[:, 0], wavenumbers=fs.wavenumbers)
sil = compute_embedding_silhouette(res.scores[:, :2], fs.metadata["oil_type"])
bw = compute_between_within_ratio(res.scores[:, :2], fs.metadata["oil_type"])
stats = compute_between_within_stats(res.scores[:, :2], fs.metadata["oil_type"], n_permutations=200)
print(sil, bw, stats["f_stat"], stats["p_perm"])

Visuals

• Scree plot: Explained variance vs component index (res.explained_variance_ratio_).

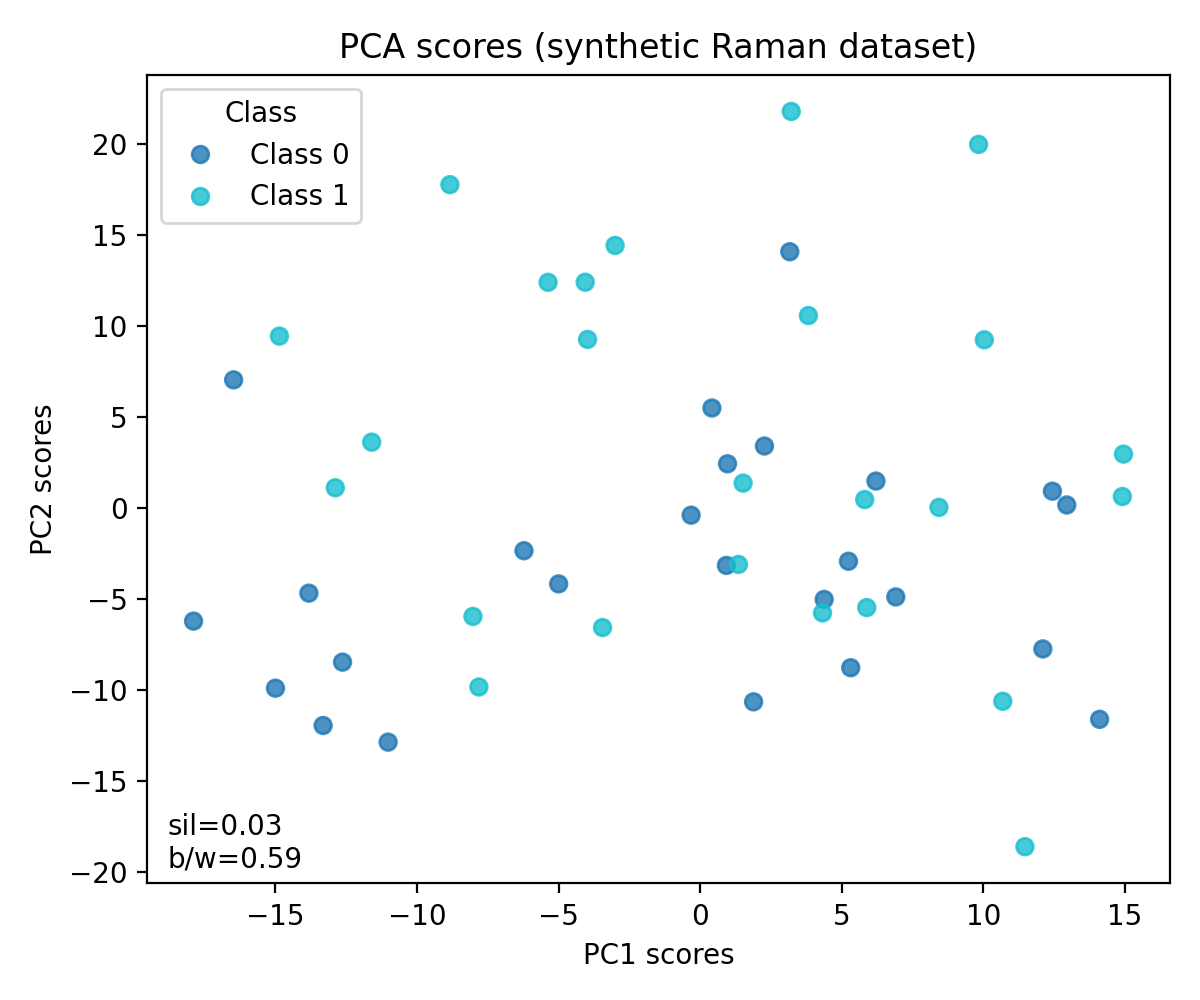

• Scores plot: PC1 vs PC2 colored by metadata; read clustering/overlap; pair with silhouette/between-within stats.

• Loadings plot: Loadings vs wavenumber; peaks indicate bands driving separation.

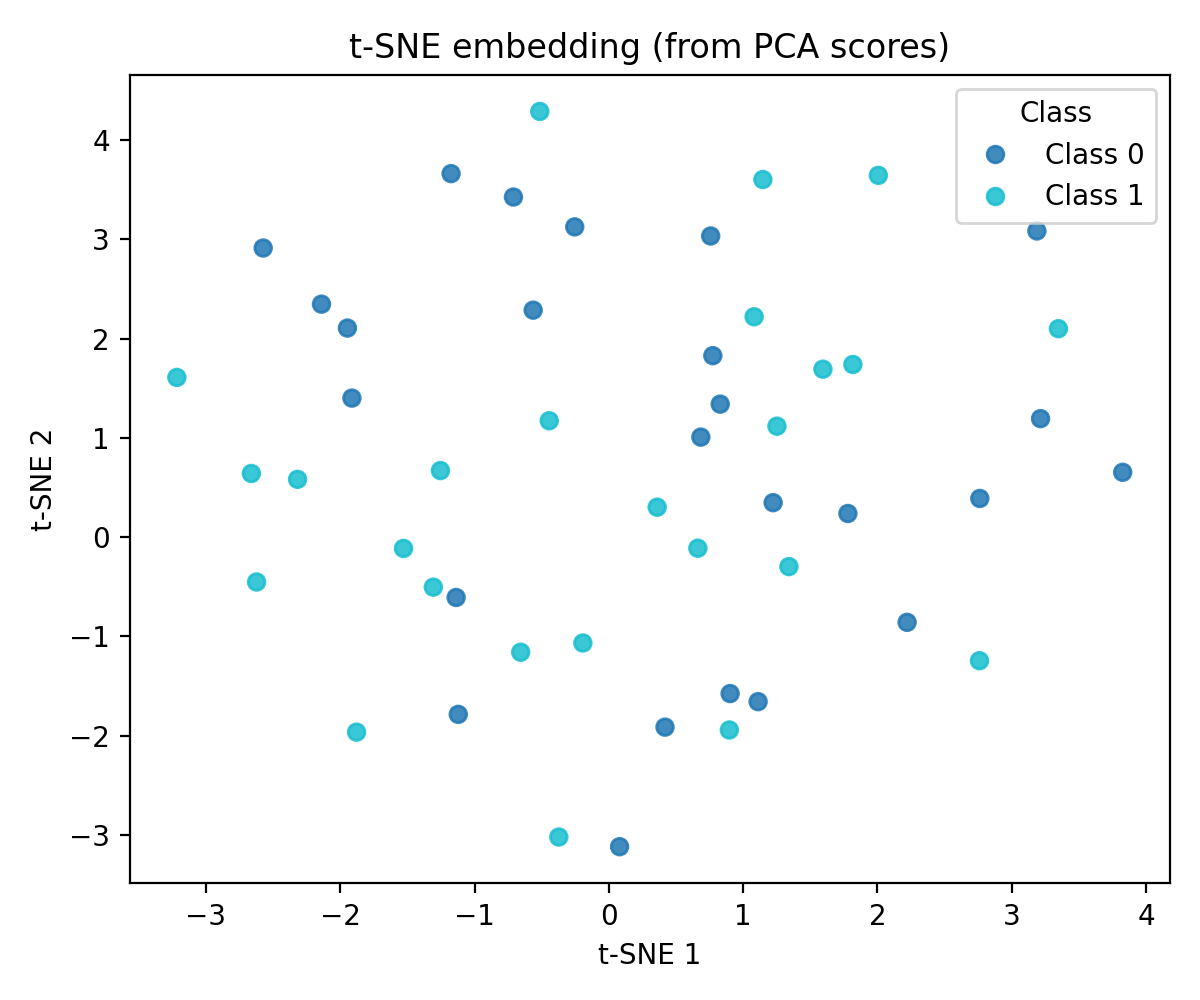

• Optional t-SNE: Visual-only; always pair with metrics (silhouette, between/within, p_perm).


Reproducible figures

• Run python docs/examples/visualization/generate_embedding_figures.py to regenerate synthetic PCA/t-SNE figures (pca_scores.png, pca_loadings.png, tsne_scores.png).
• For real data (e.g., oils), run PCA after preprocessing; color by oil_type/time; compute silhouette/between-within stats alongside plots.

Summary

• PCA reduces dimensionality and reveals structure; interpret scores/loadings in chemical context.
• Good preprocessing is essential; variance may otherwise reflect baseline/noise.
• Use PCA/t-SNE for exploration/QC; pair every plot with quantitative metrics (silhouette, between/within ratio/F-stat, p_perm) for defensible interpretation.

---

When Results Cannot Be Trusted

⚠️ Red flags for PCA and dimensionality reduction:

1. PCA applied to unscaled features (large-magnitude bands dominate, small bands hidden)
2. Unscaled PCA gives high variance features (e.g., strong C=O band) top components
3. Small but informative features (e.g., weak overtones) contribute little

4. Fix: Always standardize (unit variance) or normalize before PCA; document scaling choice

5. Batch effects not removed before PCA (batch drift appears as PC1, obscuring biology)

6. Systematic batch variation (instrument age, temperature) can dominate PCA
7. Biological signal hidden in lower components

8. Fix: Apply batch correction (ComBat, SVA) before PCA, or visualize/color by batch to interpret batch effects

9. Number of components chosen by eye ("PC1 + PC2 look separated")

10. Subjective choice risks overfitting; overstating signal clarity
11. Objective criteria (cumulative variance, scree plot elbow, cross-validation) more defensible

12. Fix: Use elbow method, silhouette score, or cross-validation to choose n_components

13. Outliers not investigated (one sample far from others in PC space)

14. Outliers can be real (damaged sample, contamination) or artifacts (processing error)
15. Outliers dominate PC1, compress other samples

16. Fix: Visualize outliers; check for data errors; consider robust PCA or outlier removal

17. Loadings interpretation without domain knowledge (PC1 loading high at random peaks)

18. Loadings can be noisy; high loadings at weak/noisy regions don't indicate importance
19. True informative bands should align with domain knowledge (expected biochemical changes)

20. Fix: Cross-check loadings with domain expertise; only trust loadings for strong, consistent peaks

21. t-SNE/UMAP used without understanding non-linearity can create artifacts

22. t-SNE/UMAP can exaggerate cluster separation; apparent clusters may dissolve under perturbation
23. Metrics (silhouette, Davies–Bouldin) more objective than visual inspection

24. Fix: Use t-SNE/UMAP for exploration only; validate clusters with stability analysis and metrics

25. Inference on low-dimensional PCA projections (e.g., running statistics on PC1 without considering full space)

26. Information loss in dimensionality reduction; statistical tests on PCs don't reflect full data
27. Example: group difference in PC1 doesn't mean groups differ significantly in high-D space

28. Fix: Run inference on original data or account for dimensionality reduction in models

29. No explanation of variance explained by noise or batch ("PC1 explains 60%, but this is just drift")

30. High cumulative variance (>90% in 3 PCs) doesn't guarantee signal quality
31. Can reflect preprocessing artifacts (e.g., baseline residuals) or batch effects
32. Fix: Visualize by batch/time; apply batch correction; compute signal-to-noise on residuals
