Baseline Correction¶

Purpose: Remove slowly varying background trends that bias peak-based features and ratios.

When to use: Baseline drift from fluorescence (Raman), ATR contact (FTIR), scattering, or instrument response.

Outcome: Clean spectra with peaks above zero baseline, suitable for feature extraction and modeling.

Why Baseline Drift Occurs¶

Baselines drift because of:

Fluorescence (Raman): Broad background from sample excitation that can dwarf weak Raman peaks
Scattering/contact (FTIR ATR): Sloping backgrounds from poor crystal contact or refractive-index mismatches
Instrument response: Slowly varying offsets from detector aging or optical path changes
Sample matrix: Particulates, emulsions, or path-length variations introduce curvature

For notation and symbols used below, see the Glossary.

When (Not) to Correct¶

Correct if: Baseline dominates dynamic range; ratios/areas are biased; spectra share similar baseline shape.
Caution if: Peaks are broad and might be mistaken for baseline; very low SNR; automated correction can remove real signal.
Visual check: Always inspect before/after; consider preserving a copy of raw data.

Methods in FoodSpec¶

Asymmetric Least Squares (ALS)¶

Concept: Fit a smooth baseline minimizing weighted residuals with asymmetric weights that downweight peaks.

Parameters: - lambda_: Smoothness (higher = smoother baseline; typical: 1e4–1e6) - p: Asymmetry (0.001–0.1; lower = more aggressive peak suppression) - max_iter: Iterations (10–100)

When to use: Moderate to strong baseline curvature; mixed peaks/baseline; most common choice.

Pitfalls: Over-smoothing if lambda_ too large; peak clipping if p too small.

Rubberband (Convex Hull)¶

Concept: Compute lower convex hull of the spectrum and interpolate baseline.

When to use: Spectra with clear gaps between peaks and background; quick, parameter-free.

Pitfalls: Fails if peaks are dense or baseline above hull; sensitive to noise spikes.

Polynomial Baseline¶

Concept: Fit low-degree polynomial (1–4) to spectrum or background-only regions.

When to use: Mild curvature; simple backgrounds; fast computation.

Pitfalls: Overfitting with high polynomial orders; unsuitable for complex fluorescence.

4. Practical guidance¶

Order in pipeline: Baseline → smoothing/normalization → features. Avoid applying after aggressive normalization.
Quality checks: Plot before/after; monitor peak heights/areas; compare across replicates.
Parameter tuning: Start with moderate lambda_ (e.g., 1e5) and p (~0.001–0.01) for ALS; adjust visually.
If over/under-correction persists, see Common problems & solutions.

5. Example (high level)¶

from foodspec.preprocess.baseline import ALSBaseline

als = ALSBaseline(lambda_=1e5, p=0.001, max_iter=10)
X_corr = als.transform(X_raw)

6. Visuals to include¶

Baseline before/after (synthetic): One spectrum with quadratic drift + noise. Show raw (with drift), true baseline, and corrected signal (e.g., subtract known baseline). Axes: wavenumber (cm⁻¹) vs intensity. Purpose: illustrate what a successful correction looks like. See docs/examples/visualization/generate_baseline_before_after.py.

Baseline before/after

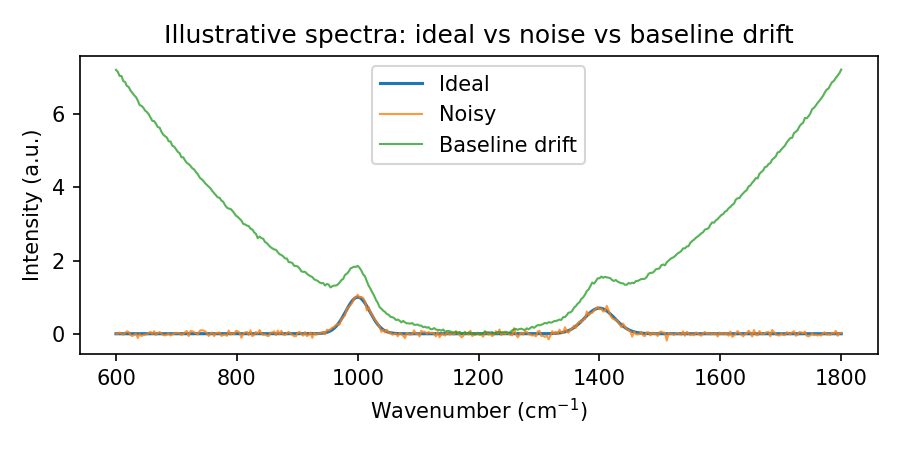

Drift/noise illustration: Overlay ideal spectrum, noisy spectrum, and drifted spectrum to show why correction is needed. Axes: wavenumber vs intensity. Generated via docs/examples/stats/generate_spectral_artifacts_figures.py.

Illustrative spectra with baseline drift and noise

Reproducible figure generation¶

Run python docs/examples/visualization/generate_baseline_before_after.py for baseline before/after.
Run python docs/examples/stats/generate_spectral_artifacts_figures.py for drift/noise illustration.

Summary¶

Baseline correction removes broad backgrounds that bias peak-based features.
ALS is a flexible default; rubberband is simple; polynomial fits suit mild curvature.
Always inspect corrections; avoid removing true broad features.

When to Use¶

Use baseline correction when:

Fluorescence interference: Raman spectra show broad fluorescent backgrounds obscuring weak peaks
Sloping baselines: FTIR-ATR spectra have tilted baselines from poor crystal contact
Ratio calculations: Peak ratios are biased by uneven backgrounds
Comparative analysis: Baseline drift varies between samples, confounding comparisons
PCA/classification: Baseline variability dominates spectral differences and masks chemical variation

When NOT to Use (Common Failure Modes)¶

Avoid baseline correction or use with extreme caution when:

Broad informative features: Sample contains wide absorption bands that could be mistaken for baseline (e.g., water bands, amorphous regions)
Very low SNR: Noise-dominated spectra where baseline fitting becomes unstable
Dense peak patterns: Closely spaced peaks with no clear baseline regions (rubberband will fail)
Already normalized data: Applying baseline correction after standard normal variate (SNV) or other normalizations can remove meaningful variation
Negative intensities expected: Some correction methods (aggressive ALS) can produce negative values, invalidating downstream ratio calculations

Recommended Defaults¶

For Raman spectroscopy (fluorescence backgrounds):

from foodspec.preprocessing import baseline_als
X_corrected = baseline_als(X, lambda_=1e5, p=0.01, max_iter=10)

- lambda_=1e5: Moderate smoothness, handles typical curvature - p=0.01: Conservative asymmetry, preserves real peaks - max_iter=10: Usually sufficient for convergence

For FTIR-ATR (mild slopes):

from foodspec.preprocessing import baseline_polynomial
X_corrected = baseline_polynomial(X, degree=2)

- degree=2: Quadratic baseline for gentle curvature

For quick exploratory analysis:

from foodspec.preprocessing import baseline_rubberband
X_corrected = baseline_rubberband(X)

- No parameters needed; fast but less robust

When Results Cannot Be Trusted¶

⚠️ Red flags for baseline correction validity:

Baseline correction removes true spectral features (ALS with low p removes real broad bands)
Aggressive baseline subtraction can eliminate informative signal
Ratio calculations biased by removed features
Fix: Inspect baseline-corrected spectra visually; check that broad true features (e.g., water, baseline) not removed; use moderate ALS parameters (p = 0.01–0.1)
Baseline corrected spectra negative in valid signal regions (spectra have negative intensities post-ALS)
Indicates over-correction; true signal removed
Invalid for intensity-based ratios or downstream modeling
Fix: Reduce ALS aggressiveness (increase p); use gentler smoothing; validate baseline visually
Different baseline methods applied to different samples (some samples ALS, others polynomial)
Inconsistent preprocessing produces incomparable spectra
Ratios and models fail across samples
Fix: Freeze preprocessing parameters before analysis; apply identical method to all samples
Baseline correction applied to over-smoothed spectra (smoothing removes peaks, then baseline correction applied)
Preprocessing order matters; over-smoothing hides information that baseline tries to fit
Compounded information loss
Fix: Apply baseline correction before smoothing; use gentle smoothing after baseline
ALS parameters (lambda, p) chosen by eye ("looks good") without validation
Data-dependent parameter choice overfits; new data may need different parameters
Reproducibility and generalization compromised
Fix: Pre-specify parameters based on spectral characteristics or previous studies; validate on test samples
Baseline features confused with true sample features (matrix baseline treated as signal)
Removing baseline removes chemistry-independent variation but not true matrix peaks
Incomplete baseline removal leaves matrix effects
Fix: Distinguish baseline (smooth, slow trend) from true peaks (sharp, chemical meaning); validate with reference materials
No baseline correction applied to noisy spectra (baseline noise directly affects ratios)
Uneven baseline amplifies noise; ratio variability increased
Statistics and reproducibility suffer
Fix: Always apply baseline correction; use appropriate method (ALS or rolling ball) for spectral type
Spectral regions with true curvature treated as baseline (curvature from sample composition corrected away)
Example: long-wavelength drift in FTIR from sample absorption treated as baseline
True information removed
Fix: Understand physical baseline sources; preserve physically meaningful curvature; inspect corrected spectra
