ANOVA and MANOVA for Food Spectroscopy

What?

ANOVA tests whether group means differ; MANOVA extends this to multiple dependent variables (e.g., multiple peak ratios or PC scores). Inputs: numeric responses (ratios/intensities/PCs) plus group labels. Outputs: test statistics (F, Wilks/Pillai), p-values, and optional post-hoc tables (Tukey, Games–Howell).

Why?

Group comparisons underpin authentication, treatment effects (heating/oxidation), and QC. Raman/FTIR bands reflect chemistry; testing ratios/peaks across groups provides statistical evidence for observed spectral differences beyond visual plots.

When?

Use when - ≥3 groups (one-way ANOVA) or multiple responses (MANOVA) and you want to test mean differences. - Groups are reasonably independent and preprocessing is stable.

Limitations - ANOVA assumes normality/homoscedasticity; MANOVA adds multivariate normality and covariance homogeneity. If violated, consider transforms or nonparametric/robust alternatives (Kruskal–Wallis + Games–Howell).

Where? (pipeline)

Upstream: preprocessing → feature extraction (peaks, ratios, PCs).
Downstream: post-hoc tests (Tukey/Games–Howell), effect sizes, reporting tables/plots.

flowchart LR
  A[Preprocessed features (ratios/PCs)] --> B[ANOVA / MANOVA]
  B --> C[Post-hoc (Tukey or Games–Howell)]
  C --> D[Effect sizes + plots/tables]

ANOVA basics

• One-way ANOVA: Compares means across ≥3 groups.
• F-statistic: ( F = \frac{SS_\text{between}/(k-1)}{SS_\text{within}/(N-k)} )
• Assumptions: normality of residuals, homoscedasticity, independence.
• Two-way ANOVA (outline): Two factors (e.g., oil_type and batch) and interaction; requires balanced or sufficiently populated cells.

MANOVA: Multivariate Analysis of Variance

• What/why: Multivariate generalization of ANOVA when you have several correlated responses (e.g., multiple ratios or PC scores) and want a single test of group separation. Avoids multiple univariate tests and captures covariance between responses.
• Model: Given (X \in \mathbb{R}^{n \times p}) (p responses) and groups (g), MANOVA tests whether group centroids differ in the p‑dimensional space.
• Statistics: Wilks’ lambda (default in FoodSpec) or Pillai’s trace; small values → stronger separation. F-approximations yield p-values.
• Assumptions: Multivariate normality, homogeneity of covariance matrices, independence. If doubtful, consider dimension reduction plus nonparametric follow-ups.

Minimal FoodSpec example

import pandas as pd
from foodspec.stats import run_manova

# df_ratios contains multiple ratio columns and an 'oil_type' column
X = df_ratios[['ratio_1655_1745', 'ratio_3010_2850']]
res = run_manova(X, df_ratios['oil_type'])
print("Wilks lambda:", res.statistic, "p-value:", res.pvalue)

Interpretation: small p-value → at least one group differs jointly across the ratios; follow with PCA/loadings or pairwise exploration.

Post-hoc comparisons

• Tukey HSD: Pairwise group comparisons when variances are similar; controls family-wise error using the studentized range distribution.
• Games–Howell: Robust to unequal variances and sample sizes; recommended for heterogeneous spectral datasets.

Tukey HSD usage (equal variances/balanced-ish groups)

from foodspec.stats import run_tukey_hsd
tukey = run_tukey_hsd(df['ratio'], df['oil_type'])
print(tukey.head())

Interpretation: adjusted p-values and confidence intervals per pair; “reject=True” indicates a significant pair.

Games–Howell usage (unequal variances/sizes)

from foodspec.stats import games_howell
tbl = games_howell(df['ratio'], df['oil_type'])
print(tbl[['group1','group2','meandiff','p_adj','reject']])

Interpretation: Welch-style pairwise comparisons without assuming equal variances; safer default when heteroscedastic or unbalanced. Reporting example: “Games–Howell showed oil A > oil B (mean diff = …, p_adj = …, 95% CI …).”

Effect sizes

• Eta-squared ( \eta^2 = SS_\text{between} / SS_\text{total} ).
• Partial eta-squared ( = SS_\text{between} / (SS_\text{between} + SS_\text{within}) ).
• Report alongside p-values to convey magnitude.

Food spectroscopy examples

• Oil authentication: ANOVA on 1655/1742 ratio across oil types; Tukey to see which pairs differ.
• Heating stages: ANOVA on unsaturation ratio across time bins; partial eta-squared to quantify effect size.
• MANOVA: Multiple ratios or PC scores across microbial strains.

Code snippets

from foodspec.stats import run_anova, run_tukey_hsd, compute_anova_effect_sizes, games_howell, run_manova

# df with columns ratio, oil_type
res = run_anova(df["ratio"], df["oil_type"])
print(res.summary)

# Effect size (requires sums of squares; here approximated)
ss_between = 10.0
ss_total = 20.0
print(compute_anova_effect_sizes(ss_between, ss_total))

# Tukey (if statsmodels installed)
try:
    tukey = run_tukey_hsd(df["ratio"], df["oil_type"])
    print(tukey.head())
except ImportError:
    pass

# Games–Howell (robust post-hoc)
gh = games_howell(df["ratio"], df["oil_type"])
print(gh.head())

# MANOVA on multiple ratios
X = df_ratios[['ratio_1655_1745', 'ratio_3010_2850']]
mv_res = run_manova(X, df_ratios['oil_type'])
print(mv_res.pvalue)

Decision aid: Is ANOVA appropriate?

%%{init: {'theme':'neutral', 'themeVariables': { 'primaryColor': '#e8f0ff', 'secondaryColor': '#fbe9e7', 'tertiaryColor': '#e8f5e9', 'lineColor': '#1f3044' }}}%%
flowchart LR
  subgraph Assess
    A([📊 Groups ≥ 3?])
    B{{Assumptions: normality & equal variances?}}
  end
  subgraph Parametric
    C([✔️ ANOVA → Tukey HSD])
  end
  subgraph Robust
    D{{Transform or nonparametric?}}
    E([🔁 Transform & reassess])
    F([🛡️ Kruskal–Wallis / Games–Howell])
  end
  A --> B --> C
  B -->|No| D -->|Transform| E
  D -->|Nonparametric| F

Reporting

• State test type (ANOVA/MANOVA), factors, assumptions, effect sizes.
• Provide p-values and post-hoc results; include means/SD per group.

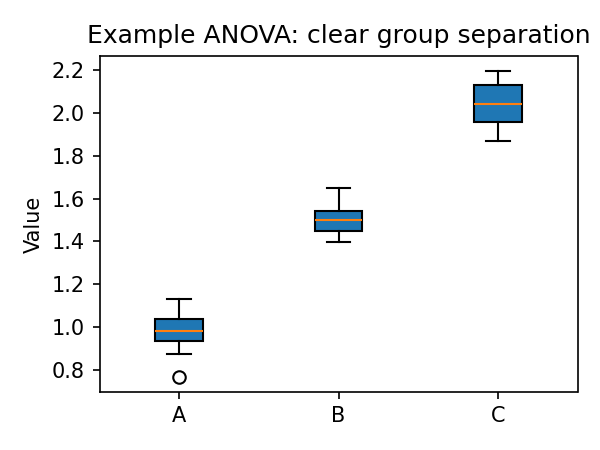

• Visuals: boxplots/mean plots with CIs; Tukey pairwise table/plot.

---

When Results Cannot Be Trusted

⚠️ Red flags for ANOVA/MANOVA reliability:

1. Assumptions violated and ignored (non-normal data, unequal variances, non-independence)
2. ANOVA assumes normality, homoscedasticity, and independence
3. Violating these inflates Type I error (false positives)

4. Fix: Check Q-Q plots, Levene's test, autocorrelation; use Games–Howell (heteroscedastic ANOVA) or Kruskal–Wallis

5. Extreme sample size imbalance (n_A = 100, n_B = 3)

6. Power limited by smallest group; ANOVA assumptions broken
7. May mask or exaggerate group differences

8. Fix: Aim for balanced or near-balanced designs; use Welch's ANOVA if imbalanced

9. No correction for multiple post-hoc comparisons (Tukey test on 10 pairwise comparisons, report p < 0.05 without correction)

10. 10 comparisons expect ~0.5 false positives at uncorrected α = 0.05
11. Tukey correction prevents this, but only if applied consistently

12. Fix: Always use multiple-comparison correction (Tukey HSD, Scheffe, Dunnett); report adjusted p-values

13. Batch confounding (all samples of type A processed Day 1, type B processed Day 2)

14. Group differences may reflect batch drift, not biology
15. Impossible to disentangle batch from treatment

16. Fix: Randomize sample order; include batch as factor in ANOVA; use batch-aware CV

17. MANOVA with high-dimensional data, low replication (p = 500 wavenumbers, n = 20 samples)

18. MANOVA assumes p < n for invertibility; high-dimensional, low-n data produces unstable results
19. May yield spurious significance due to overfitting

20. Fix: Use dimensionality reduction (PCA) before MANOVA; or use univariate ANOVA with FDR correction

21. Pseudo-replication (3 technical replicates of 1 sample per group treated as 3 independent observations)

22. Technical replicates (scans of same aliquot) are autocorrelated
23. ANOVA assumes independence; violating this inflates false positives

24. Fix: Analyze ≥3 distinct samples; document which measurements are technical vs biological replicates

25. Outliers removed selectively to achieve significance

26. Removing extreme values to improve results is data fabrication
27. Robustness requires pre-specified outlier criteria

28. Fix: Define outlier criteria before analysis (e.g., >3 SD); document and report all removals

29. Perfect or near-perfect separation of groups (MANOVA: 100% group separation)

30. May indicate overfitting, data entry errors, or artificial separation
31. Real food data rarely separates perfectly across many features
32. Fix: Visualize data; check for errors; validate on independent test set

Next Steps

• Hypothesis testing — Foundation for inference tests.
• Study design — Design experiments for statistical power.
• API: Statistics — Full reference for all statistical functions.

---

Further reading

• Hypothesis testing
• t-tests, effect sizes, power
• Study design
• Nonparametric methods & robustness
• API: Statistics
