Correlation and Mapping in Food Spectroscopy

Correlations assess associations between spectral features and quality metrics. Mapping extends this to time/sequence relationships (asynchronous or lagged). This chapter covers Pearson/Spearman correlations and cross-correlation in food spectroscopy contexts.

Correlation coefficients

  • Pearson (linear): ( r = \frac{\sum (x_i - \bar{x})(y_i - \bar{y})}{\sqrt{\sum (x_i - \bar{x})^2 \sum (y_i - \bar{y})^2}} ). Assumes approximate linear relationship; sensitive to outliers.
  • Spearman (rank): Correlates rank-transformed data; robust to monotonic but non-linear relationships.
  • Kendall (optional): Rank-based; less common here but can be used for ordinal/robust needs.

When to choose

  • Use Pearson when data are roughly linear and continuous.
  • Use Spearman when relationships are monotonic but not linear, or when outliers/ordinal scales are present.

Synchronous mapping

  • Correlate features measured under the same conditions (e.g., 1655/1742 ratio vs peroxide value).
  • Useful for cross-validating spectral markers with reference assays (lab chemistry).

Asynchronous / cross-correlation (time/sequence)

  • Cross-correlation explores lagged relationships (e.g., spectral ratio changes lagging behind temperature or time).
  • For sequences of equal length, compute correlation at multiple lags to see leading/lagging effects.
  • Simple definition for lag ( k ): ( r_k = \sum_t x_t y_{t+k} ) (typically normalized).

Food spectroscopy examples

  • Heating: correlate unsaturation ratio with heating time (Pearson/Spearman); cross-correlate ratio vs temperature ramp to detect lag.
  • Fermentation or sequential processing: track spectral markers vs time/quality scores.
  • QC: correlate fingerprint similarity scores with batch attributes.

Code snippets

import pandas as pd
from foodspec.stats import compute_correlations, compute_correlation_matrix, compute_cross_correlation

df = pd.DataFrame({"ratio": [1.0, 1.1, 1.2, 1.3], "peroxide": [2, 4, 6, 8]})
pear = compute_correlations(df, ("ratio", "peroxide"), method="pearson")
print(pear)

mat = compute_correlation_matrix(df, ["ratio", "peroxide"], method="spearman")
print(mat)

xcorr = compute_cross_correlation([1, 2, 3, 4], [1, 2, 3, 4], max_lag=1)
print(xcorr)

# Simple heatmap (matplotlib)
import matplotlib.pyplot as plt
fig, ax = plt.subplots()
im = ax.imshow(mat.values, cmap="coolwarm", vmin=-1, vmax=1)
ax.set_xticks(range(len(mat.columns)))
ax.set_xticklabels(mat.columns, rotation=45, ha="right")
ax.set_yticks(range(len(mat.index)))
ax.set_yticklabels(mat.index)
fig.colorbar(im, ax=ax, label="Spearman r")
fig.tight_layout()
plt.close(fig)

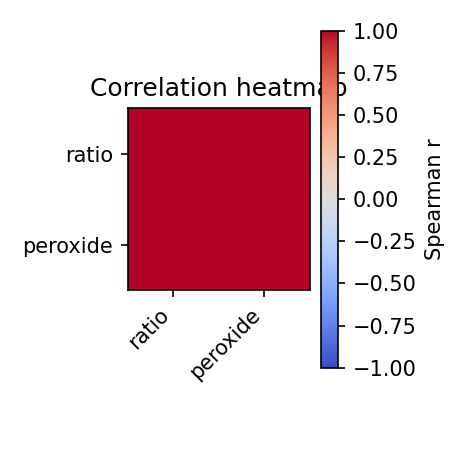

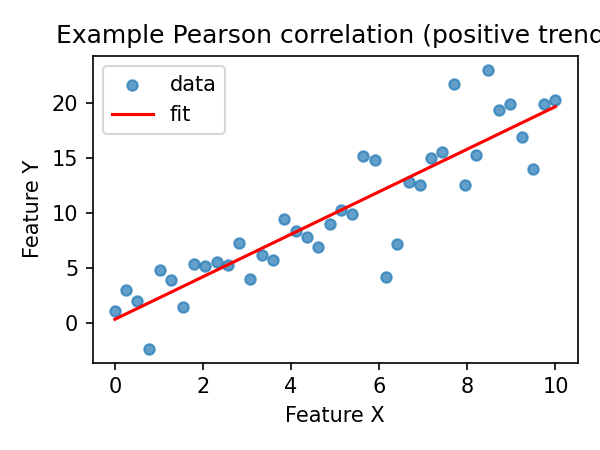

Correlation scatter with positive trend Correlation heatmap example

Decision aid: Pearson vs Spearman

flowchart LR
  A[Association?] --> B{Linear & continuous?}
  B -->|Yes| C[Pearson]
  B -->|No| D{Monotonic ranks?}
  D -->|Yes| E[Spearman]
  D -->|No| F[Consider transformation / nonparametric association]

Interpretation

  • Report r and p-value; for Spearman, emphasize monotonicity rather than linear slope.
  • Use heatmaps for multiple features; annotate significant associations cautiously to avoid over-interpretation.

When Results Cannot Be Trusted

⚠️ Red flags for correlation validity:

  1. High correlation without checking causation (r = 0.95 does not prove causation)
  2. Correlation measures association, not causation
  3. Confounders can create spurious correlations (e.g., both variables driven by batch)

  4. Fix: Report correlation as descriptive statistic; discuss confounders; use causal inference methods if causal claims intended

  5. Testing many correlations without multiple-test correction (100 features → 100 pairwise tests, report r > 0.3 as significant)

  6. Uncorrected significance levels inflate with test count
  7. 100 independent tests expect ~5 false positives at α = 0.05

  8. Fix: Apply FDR correction or permutation tests; report Benjamini–Hochberg adjusted p-values

  9. Outliers dominating correlation (r = 0.9 driven by 2 extreme points)

  10. Pearson r is sensitive to outliers; single outlier can reverse correlation sign
  11. Spearman is more robust but still affected by extreme ranks

  12. Fix: Visualize scatter plot; compute robust correlation (e.g., percentage bend); report with/without outliers

  13. Non-linear relationship misrepresented as linear (r = 0.3, but relationship is U-shaped)

  14. Pearson r assumes linear association; nonlinear relationships may show low r despite strong association
  15. Spearman captures monotonicity but misses U-shaped or other patterns

  16. Fix: Visualize relationships; consider nonparametric association measures; test for quadratic terms

  17. Sample size too small for reliable p-value (n = 5, r = 0.6, p = 0.28)

  18. Correlation p-values depend heavily on n; small samples have low power
  19. Correlation estimated from tiny samples doesn't generalize

  20. Fix: Report confidence intervals around r; plan for adequate sample size; consider cross-validation

  21. Pseudo-replication in correlation (correlating batch means instead of individual samples)

  22. Reducing data (averaging replicates) inflates correlation and deflates uncertainty
  23. Over-aggregation creates artificial certainty

  24. Fix: Analyze at the level of individual measurements; use mixed-effects models if nested structure present

  25. Batch confounding in correlation (all samples from Device A have high ratio, all from Device B have low ratio)

  26. Batch effects can create spurious correlations
  27. Correlation may reflect device differences, not biological association

  28. Fix: Include batch in analysis (partial correlation, batch-adjusted residuals); visualize by batch

  29. Interpreting absence of correlation as independence (r ≈ 0 means "not related")

  30. Pearson r ≈ 0 means no linear relationship; nonlinear associations may exist
  31. Spearman ρ ≈ 0 means no monotonic relationship; complex patterns may be present
  32. Fix: Visualize relationships; test for nonlinear patterns; report p-value with scatter plot
